Steel Aircraft Hangar

Aviation-Specific Engineering

Secure and protect your valuable aircraft with our premium steel aircraft hangars, specifically engineered for the demanding requirements of aviation storage and maintenance. These professional-grade structures provide the spacious, clear-span environments essential for aircraft operations while ensuring maximum security and weather protection.

Heavy-Duty Steel Frame Construction

Each hangar features a robust hot-galvanized Q235 steel frame system designed to handle the unique load requirements and span distances needed for aircraft storage. The precision-engineered frame provides exceptional structural integrity while the galvanized coating ensures long-term corrosion resistance in all weather conditions.

Weather-Resistant Cladding System

The exterior is clad with high-grade 0.7mm (22 gauge) ribbed steel paneling in a box section profile, delivering outstanding protection against weather elements, fire hazards, and unauthorized access. This robust cladding system ensures your valuable assets - from manufacturing equipment and raw materials to finished products and vehicles - remain secure and protected year-round.

Superior Cladding Protection

The exterior is protected by high-grade 0.7mm (22 gauge) ribbed steel paneling that delivers outstanding resistance against weather elements, impact damage, and unauthorized access. This robust cladding system creates a secure environment for aircraft while providing excellent protection against storms, hail, and temperature fluctuations.

Clear-Span Interior Design

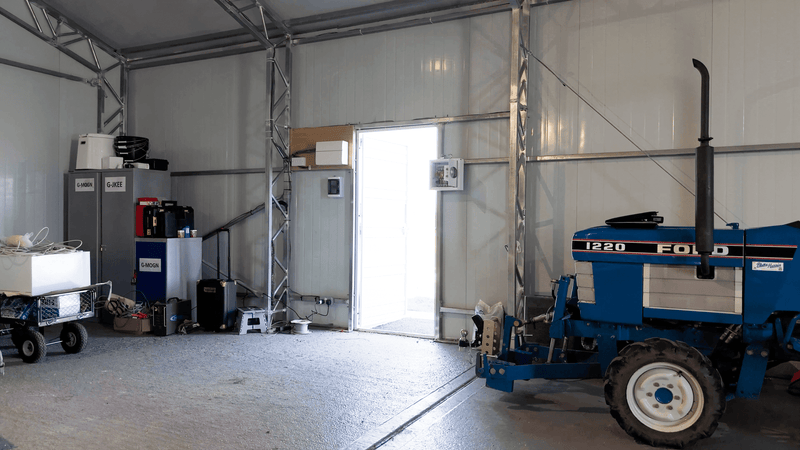

Our hangars feature clear-span construction that eliminates internal support columns, maximizing usable floor space for aircraft maneuvering and maintenance operations. This design allows for optimal aircraft positioning and provides unobstructed access for maintenance equipment, tooling, and personnel movement.

Customizable Access Solutions

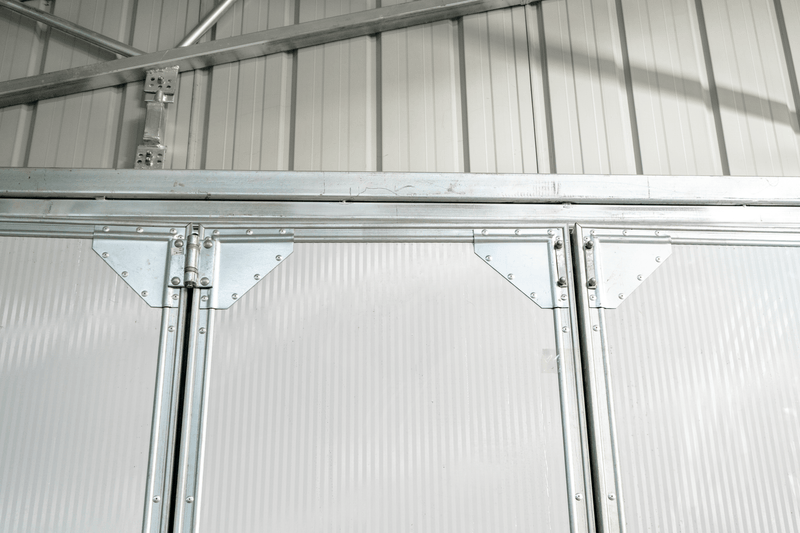

Configure your hangar with professional-grade access systems including bi-fold doors, electric sliding doors, or sectional overhead doors sized specifically for your aircraft requirements. Door systems can be positioned to optimize aircraft ingress and egress while maintaining structural integrity and security.

Climate Control Options

Optional insulation systems are available to create climate-controlled environments ideal for aircraft maintenance, avionics work, and long-term storage. Advanced insulation helps regulate temperature and humidity while reducing condensation that can damage sensitive aircraft components and electronics.

We supply comprehensive written installation instructions with every order, complemented by detailed video guides when available. Our expert team is always on hand to provide guidance and answer any questions you may have throughout the installation process.

We provide detailed design drawings for every project. Our engineers carefully craft each plan to meet your exact requirements, with efficiency and structural integrity at the forefront of our design process.

Frame Construction

• Material: Hot-galvanized Q235 steel frame
• Design: Clear-span construction without internal columns
• Finish: Hot-dip galvanized coating for corrosion protection
• Engineering: Aviation-specific load calculations and wind resistance

Single Sheet Cladding System

• External Paneling: 0.7mm (22 gauge) ribbed steel paneling
• Profile: High-strength ribbed design
• Coating: Weather and corrosion-resistant finish
• Security: Impact-resistant construction for enhanced protection

Insulated Cladding System

• Type: 50mm insulated sandwich panels
• Options: EPS or PIR insulation available
• Thermal Performance: Enhanced energy efficiency
• Acoustic Properties: Sound dampening capabilities

Standard Sizes Available

• Width: Multiple options from standard range
• Length: Customizable to project requirements
• Height: Variable eave heights available
• Custom Sizing: Bespoke dimensions available on request

Door and Access Options

• Personnel Doors: Various sizes and positions
• Industrial Doors: Roller shutters and sectional doors

Additional Features

• Ventilation: Natural and mechanical options
• Guttering: Integrated rainwater management
• Color Options: Range of standard and custom colors

Applications

• Industrial warehouses and storage facilities
• Manufacturing and production buildings
• Agricultural storage and livestock housing
• Aircraft hangars and maintenance facilities
• Commercial workshops and service centers
• Temporary and semi-permanent structures
• Container storage and logistics centers

Standard Delivery Timeline:

1. In-Stock Items: 2-3 business days for standard configurations
2. Custom Orders: 4-18 weeks depending on specification requirements
3. Express Service: Expedited delivery available for urgent projects (contact for pricing)

Delivery Coverage:

1. UK Mainland: Comprehensive coverage with dedicated logistics network
2. Scotland and Wales: Standard delivery service to most locations
3. Northern Ireland: Available with extended delivery timeframes
4. International: Export services available (contact for specific requirements)

Shipping and Logistics:

1. Professional logistics partners ensure safe handling and on-time delivery
2. All components carefully packaged to prevent transit damage
3. Delivery tracking provided for all orders
4. Specialized transport for oversized components when required

To unload the shelter upon delivery, a forklift with a minimum load capacity of 1500 kg is required. This ensures the safe and efficient handling of the shipment. In cases where a forklift is not available, alternative arrangements can be made, though please note that additional charges may apply for such accommodations.

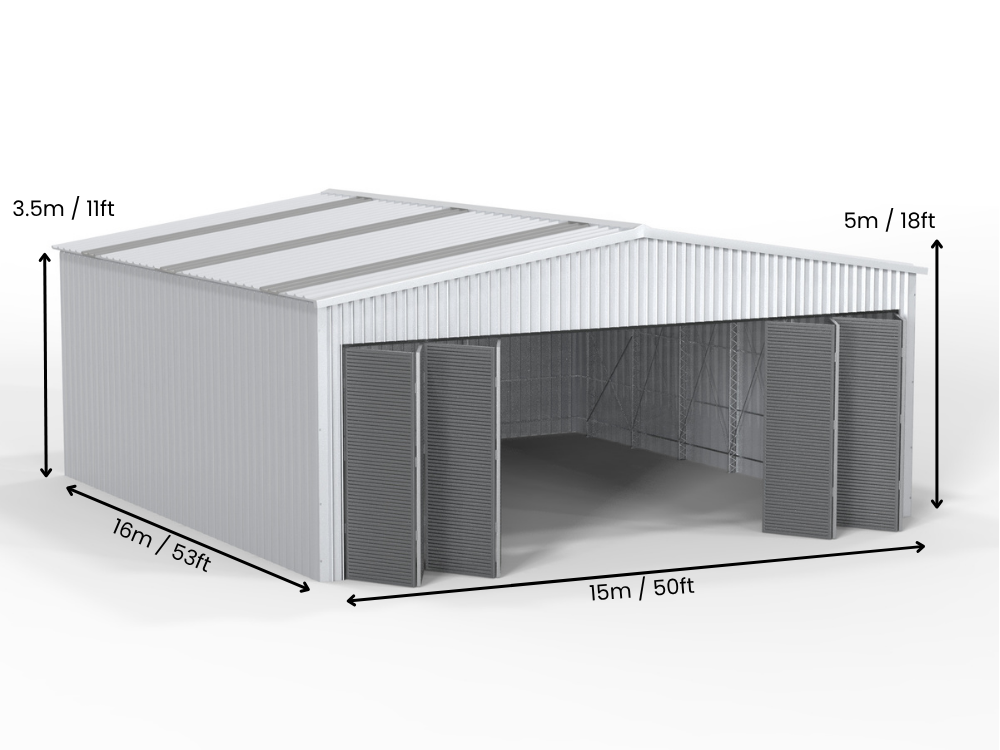

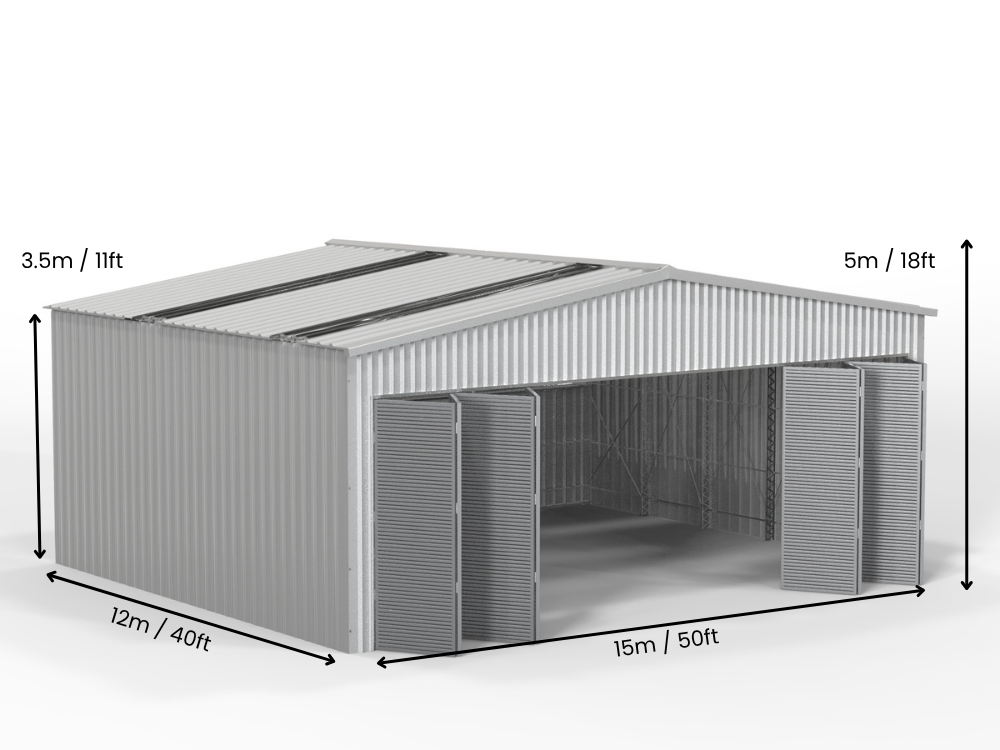

Standard options are 33×50×18 ft (10×15×5.5 m), 40×50×18 ft (12×15×5.5 m), and 53×50×18 ft (16×15×5.5 m).

Either non-insulated .7 mm box-section steel cladding or 50 mm insulated sandwich panelling.

Starting at £20,221, with flexible sizes and insulation options to fit your aircraft and your budget.

A hot-dip galvanised lattice RHS (Rectangular Hollow Section) steel frame for high strength-to-weight performance, paired with 0.7 mm ribbed steel panelling for robust, low-maintenance protection.

Absolutely. Position roller shutters, sliding doors, and personnel doors where you need them, choose your RAL colour, and configure widths/heights for tail clearance and wingspan.

Absolutely. Choose steel bi-fold doors (non-insulated) or swap to a roller shutter to suit your opening size and workflow. Add personnel doors where needed, pick your RAL colour, and set widths/heights for tail clearance and wingspan.

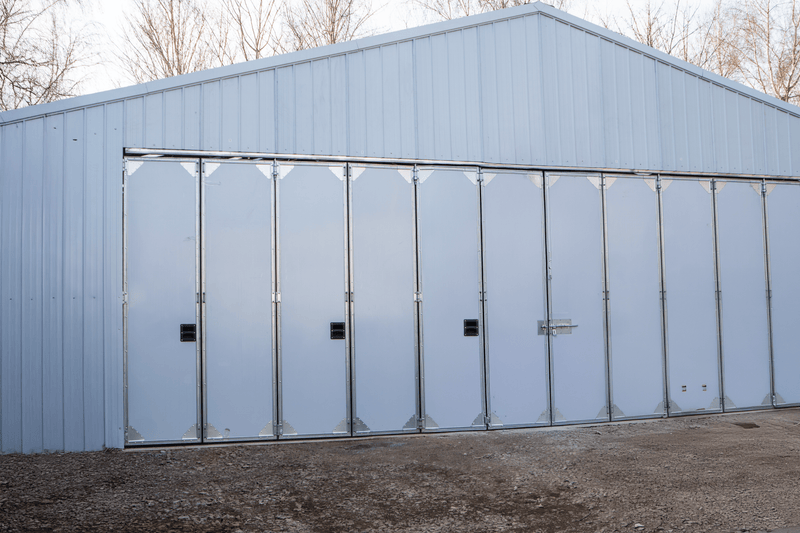

Options include non-insulated steel bi-fold doors for wide, unobstructed access, roller shutters (manual or powered) for fast daily use, and personnel doors for safe, convenient entry/exit.

Standard models can be dispatched quickly, while custom builds typically run 4–18 weeks depending on spec. Everything arrives palletised and clearly labelled for a smooth install.

Long-term peace of mind: 20-year structural warranty on the steel frame and 6-year warranty on panelling (category terms apply).

Yes—flexible finance (subject to approval) and UK & international delivery so you can get airborne with the right space, wherever you operate.
